Rotalution provides new Magdrive pumps that can replace the SPX and Xylem series
Rotalution is the producer of replacement pumps for the SPX MDR pump series and the Xylem NEMP series.
We produce the pump according to the required specifications. Our wharehouse has a lot of the parts on stock and we can directly assemble the correct specific pump.
Rotalution Pumps: MAGDRIVE
Our pumps are identical to te Xylem versions, with the same type numbers to ease the selection. Also can they replace the MDR- Seal-Less Centrifugal pumps formerly made by SPX Johnson Pumps.
Magnetic driven non metalic pumps. Highly chemically resistant and therefore suited to transport agressive and hazardous liquids.
No shaft seal and no contact with any metallic parts! Low maintenance cost!
MAGDRIVE TYPES:

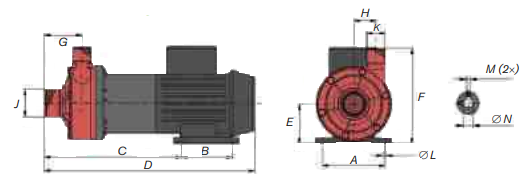

A | B | C | D | E | F | G | H | J(male) | K(male) | Temp Range | Motor | |
MEMP100/6 | 90 | 71 | 136 | 271 | 56 | 125 | 47 | 27 | BSP 3/4" | BSP 3/4" | -20 to +85 dr. C | 90W |
NEMP120/8 | 100 | 80 | 195 | 329 | 63 | 141 | 55 | 37 | BSP 1. 1/4" | BSP 3/4" | -20 to +85 dr. C | 180W(1) 250W(3) |
NEMP160/9
| 119 | 80 | 242 | 327 | 63 | 141 | 55 | 37 | BSP 1. 1/4" | BSP 3/4" | -20 to +85 dr. C | 180W(1) 250W(3) |
NEMP200/12
| 112 | 90 | 252 | 418 | 71 | 171 | 66 | 40 | BSP 1. 1/2" | BSP 1" | -20 to +85 dr. C | 550W |
NEMP270/17
| 157 | 100 | 303 | 508 | 82 | 214 | 94 | 59 | BSP 2" | BSP 1. 1/4" | -20 to +85 dr. C | 1100W |
NEMP300/20 | 140 | 100 | 321 | 535 | 90 | 222 | 94 | 59 | BSP 2" | BSP 1. 1/4" | -20 to +85 dr. C | 1500W |
NEMP500/20 | 140 | 125 | 321 | 580 | 90 | 222 | 94 | 59 | BSP 2" | BSP 1. 1/4" | -20 to +85 dr. C | 2200 |
Xylem replacements are by identical type number.
SPX Replacements:
MDR45P-1V/VD
MDR75P-1V/VD
MDR5P-1V/VD
MDR105P-1V/VD
MDR116P-1V/VD
Other Features:
- Two different types of impellers are available for maximum density: 1V for maximum 1,2 kg/dm3 and 1VD for maximum 1,8 kg/dm3.
- The pumps are delivered with standard foot mounted motors with small IEC flanges.
- The body is made of PP (P3) Fiberglass reinforced polypropylene or from PVDF (P2) Carbon filled polyvinylidene Flouride
- The magnets are fully encapsuled
- Graflon bushes, Rulon optional
